Tensile testing: load/unload
Description
A uniaxial tensile test is performed at a specified strain rate. The specimen is loaded to a specified strain or stress level and then unloaded at the same crosshead speed to zero load. Strain is measured using Digital Image Correlation (DIC) or a clip-on extensometer.

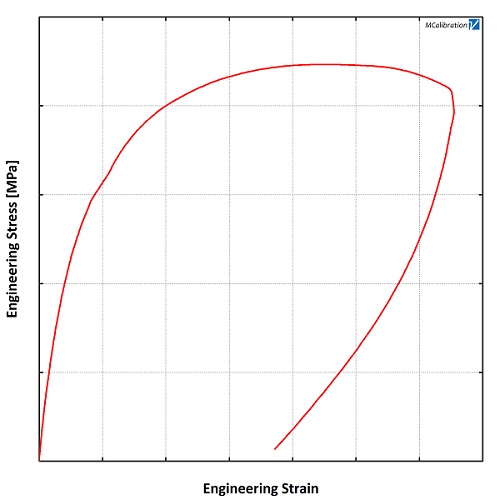

Example Data
Temperature Options
This test can generally be performed at any temperature between -80ºC and 280ºC.
- CT: Cryogenic temperatures (-80ºC to 20ºC)
- RT: Room temperature (~ 20ºC)
- HT: High temperatures (20ºC to 280ºC)
Note: The use of the temperature chamber for high and low temperature tests limits the crosshead displacement for these tests. Some combinations of material, temperature, and specimen geometries may not be possible to complete to failure.
Strain Rates
Strain rates up to ~ 1/s are possible, depending on specimen geometry.
Applicable Standards
ASTM D638, ISO 527
Data Provided
Time, Engineering Strain, Engineering Stress
Specimen Requirements
ASTM D638 or ISO 527 "dog-bone" geometries are preferred. Comparable non-standard dog-bone or cylindrical geometries are also possible.
Note that we request extra specimens to ensure a sufficient supply of specimens for valid testing.
Veryst can also assist in molding standard and non-standard test specimens. Please contact us if you are interested in discussing this option.
Replicates Recommended
Two - five (2-5)
More Information
For a customized quotation, please write to us at testing@veryst.com and indicate the Test ID (UT002), type of material, test temperatures, specimen geometries available, or other relevant details.
